Cable .75mm 2c CBS LSHF Control Flex Grey Tinned
Firstflex Cables

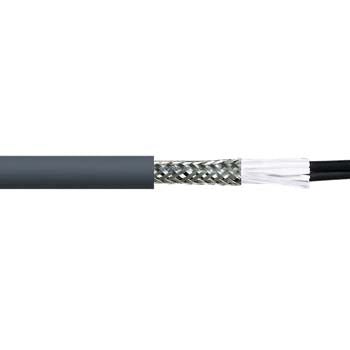

Cable .75mm 2c CBS LSHF Control Flex Grey Tinned

Ideal part number AFLJFCY02075H Manufacturer number JFCY02/0.75H Barcode 9416024113021
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 0.75mm 2 core CBS LSHF Control Flex Grey Tinned

Technical specifications

Colour
Grey
Core colour
Black numbered
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
0.75 mm²
Approximate stranding No. of wires x mm
24/0.2
Approximate overall diameter
6.2 mm²
Rated voltage
300 / 500V
Approx weight per km
59 kg
Relevant standards
IEC 60228, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034
Suits gland type
GMA216
Cable class
5
Conductor type
Tinned copper
Insulation
LSHF,X-90
Sheath
LSHF
Material
LSHF
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Tinned copper braid
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
