Cable 1mm 3c CBS PVC/SPO Control Flex Grey
Firstflex Cables

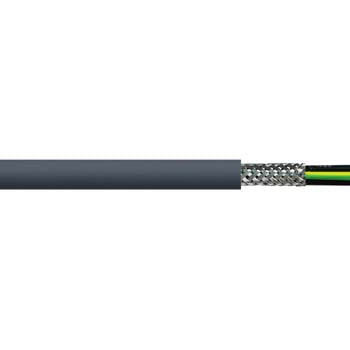

Cable 1mm 3c CBS PVC/SPO Control Flex Grey

Ideal part number AFLJFCY0310 Manufacturer number JFCY03/1.0 Barcode 9416024113083
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 1.0mm 3 core Copper Braided Screen PVC/SPO Control Flex Grey

Technical specifications

Colour
Grey
Core colour
Black numbered, Green/Yellow
Total no. of cores
3
No. of cores excl. earth
2
No. of earth
1
Nominal size
1.0 mm²
Earth nominal size
1.0 mm²
Approximate stranding No. of wires x mm
32/0.2
Approximate overall diameter
6.7 mm²
Rated voltage
300 / 500V
Approx weight per km
80 kg
Relevant standards
DIN VDE 0245, DIN VDE 0281-1, DIN VDE 0293, DIN VDE 0295, IEC 60228, IEC 60332-1
Suits gland type
GMA216
Cable class
5
Conductor type
Plain copper
Insulation
SPVC V-75
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Tinned copper braid
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
80°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
80°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
80°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
