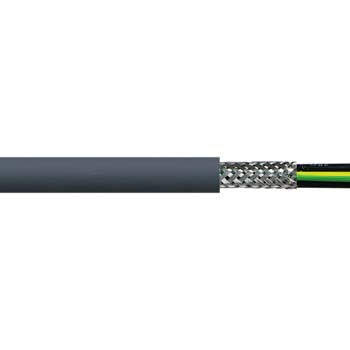

Cable .75mm 4c CBS LSHF Control Flex Grey Tinned

Cable .75mm 4c CBS LSHF Control Flex Grey Tinned

by Firstflex Cables
Ideal Part Number AFLJFCY04075H Manufacturer Number JFCY04/0.75H Barcode 9416024113120

Product Details

Cable 0.75mm 4 core CBS LSHF Control Flex Grey Tinned
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Colour
Grey
Core colour
Black numbered, Green/Yellow
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
0.75 mm²
Earth nominal size
0.75 mm²
Approximate stranding No. of wires x mm
24/0
Approximate overall diameter
7.1 mm²
Rated voltage
300 / 500V
Approx weight per km
77 kg
Relevant standards
IEC 60228, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034
Suits gland type
GMA216
Cable class
5
Conductor type
Tinned copper
Insulation
LSHF,X-90
Sheath
LSHF
Material
LSHF
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Tinned copper braid
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
