Cable 1.5mm 12c CBS LSHF Control Flex Grey Tinned
Firstflex Cables

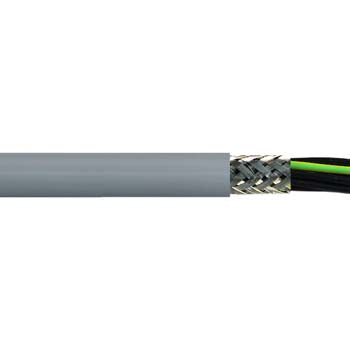

Cable 1.5mm 12c CBS LSHF Control Flex Grey Tinned

Ideal part number AFLJFCY1215H Manufacturer number JFCY12/1.5H Barcode 9416024113304
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 1.5mm 12 core CBS LSHF Control Flex Grey Tinned

Technical specifications

Colour
Grey
Core colour
Black numbered, Green/Yellow
Total no. of cores
12
No. of cores excl. earth
11
No. of earth
1
Nominal size
1.5 mm²
Earth nominal size
1.5 mm²
Approximate stranding No. of wires x mm
30/0.25
Approximate overall diameter
12.6 mm²
Rated voltage
300 / 500V
Approx weight per km
338 kg
Relevant standards
IEC 60228, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034
Suits gland type
GK25STD
Cable class
5
Conductor type
Tinned copper
Insulation
LSHF,X-90
Sheath
LSHF
Material
LSHF
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Tinned copper braid
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
