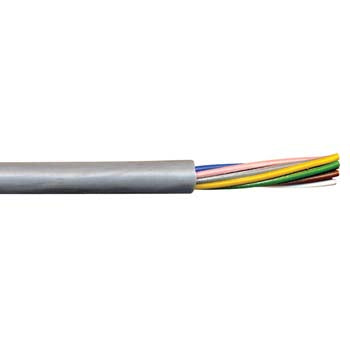

Cable .25mm 4c SPV/SPV Control Flex 300/500V 80Deg
Firstflex Cables

Cable .25mm 4c SPV/SPV Control Flex 300/500V 80Deg

Ideal part number AFLJT04025 Manufacturer number JT04/0.25 Barcode 9416024113427
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 0.25mm 4 core SPV/SPV Control Flex 300/500V 80Deg

Technical specifications

Colour
Grey
Core colour
Brown, Green, White, Yellow
Total no. of cores
4
No. of cores excl. earth
4
No. of earth
0
Nominal size
0.25 mm²
Approximate stranding No. of wires x mm
14/0.15
Approximate overall diameter
4.3 mm²
Rated voltage
300 / 500V
Approx weight per km
26 kg
Relevant standards
DIN 47100, DIN VDE 0245, DIN VDE 0250, IEC 60228, IEC 60332-1
Cable class
5
Conductor type
Plain copper
Insulation
SPVC V-75
Sheath
SPVC V-75
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
80°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
80°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
80°C
Minimum bending radius fixed
7.5 x cable diameter
Minimum bending radius flexing
15 x cable diameter
