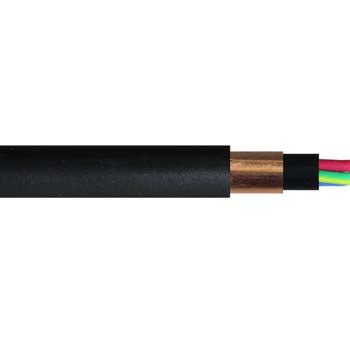

Cable 2.5mm 3c + 1x 2.5mm VSD Screened Tape Flex Black
Firstflex Cables

Cable 2.5mm 3c + 1x 2.5mm VSD Screened Tape Flex Black

Ideal part number AFLKSXCY42.5BK Manufacturer number KSXCY4/2.5BK Barcode 9416024113533
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 2.5mm 3 core + 1x 2.5mm VSD Screened Tape Flex Black

Technical specifications

Colour
Black
Core colour
Blue, Green/Yellow, Red, White
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
2.5 mm²
Earth nominal size
2.5 mm²
Approximate stranding No. of wires x mm
50/0.25
Approximate overall diameter
15 mm²
Rated voltage
0.6/1kV
Approx weight per km
300 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, AS/NZS 5000.1, IEC 60332-1
Suits gland type
GM25EMCFT
Cable class
5
Conductor type
Plain copper
Insulation
X-90
Sheath
SPVC
Material
PVC
Bedding sheath
true
Bedding sheath material
SPVC 5V-90
Inner sheath
false
Armoured
false
Screened
true
Screening material
Copper tape
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-30°C
Maximum operating temperature
90°C
