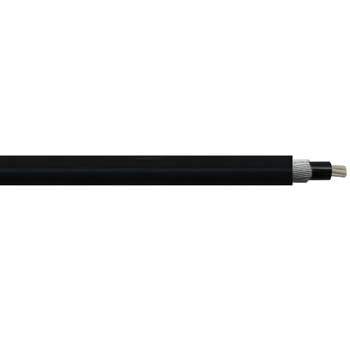

Cable 2.5MM 2c PVC SWA 0.6/1KV Multicore Black
Firstflex Cables

Cable 2.5MM 2c PVC SWA 0.6/1KV Multicore Black

Ideal part number AFLMCH0225SWA Manufacturer number MCH02/2.5SWA Barcode 9416024114424
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 2.5MM 2 core PVC SWA 0.6/1KV Multicore Black

Technical Specifications

Colour
Black
Core colour
White numbered
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
2.5 mm²
Approximate stranding No. of wires x mm
7/0.67
Approximate overall diameter
15.0 mm²
Rated voltage
0.6/1kV
Approx weight per km
400 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 60079
Suits gland type
GMCW20S
Cable class
2
Conductor type
Plain copper
Insulation
V-90
Sheath
SPVC
Material
PVC
Bedding sheath
true
Bedding sheath material
SPVC 5V-90
Inner sheath
false
Armoured
true
Armour material
Galvanised steel wire armour
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
12 x cable diameter
