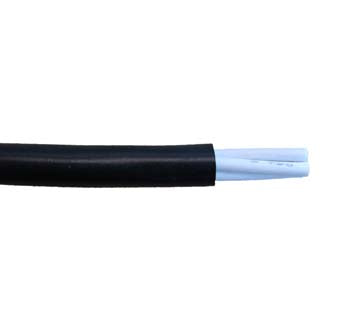

Cable 1.5mm 4c No Earth Circular Multicore Numbered
Firstflex Cables

Cable 1.5mm 4c No Earth Circular Multicore Numbered

Ideal part number AFLMCN0415 Manufacturer number MCN04/1.5 Barcode 9416024114608
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable SPVC V90 1.5mm 4 Numbered Cores No Earth Circular Multicore UV Stabilised Black

Suitable for outdoor use and wet locations not subject to mechanical damage, also for direct burial or underground ducting. With correct explosion proof glands this cable can be installed in locations subject to explosion hazards AS/NZS 60079.14.

Technical Specifications

Colour
Black
Core colour
White numbered
Total no. of cores
4
No. of cores excl. earth
4
No. of earth
0
Nominal size
1.5 mm²
Approximate stranding No. of wires x mm
7/0
Approximate overall diameter
9.5 mm²
Rated voltage
450 / 750V
Approx weight per km
129 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, AS/NZS 5000.3, AS/NZS 60079
Suits gland type
GMA220S
Cable class
2
Conductor type
Plain copper
Insulation
SPVC V-90
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
12 x cable diameter
