Cable 35mm 3c + 10mm Earth Circular SWA TPS
Firstflex Cables

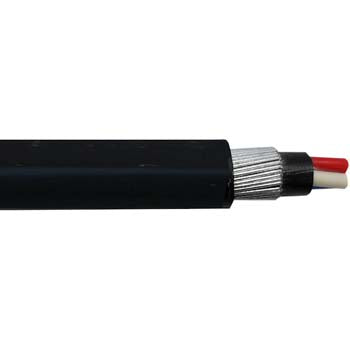

Cable 35mm 3c + 10mm Earth Circular SWA TPS

Ideal part number AFLMCX0435SWA Manufacturer number MCX04/35SWA Barcode 9416024115018
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 35mm 3c + 10mm Earth Circular SWA TPS

Technical specifications

Colour
Black
Core colour
Blue, Green/Yellow, Red, White
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
35 mm²
Earth nominal size
10 mm²
Approximate stranding No. of wires x mm
19/1.53
Approximate overall diameter
30.7 mm²
Rated voltage
0.6/1kV
Approx weight per km
2257 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 60079
Suits gland type
GMCW32
Cable class
2
Conductor type
Plain copper
Insulation
X-90
Sheath
SPVC
Material
PVC
Bedding sheath
true
Bedding sheath material
SPVC 5V-90
Inner sheath
false
Armoured
true
Armour material
Galvanised steel wire armour
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
12 x cable diameter
