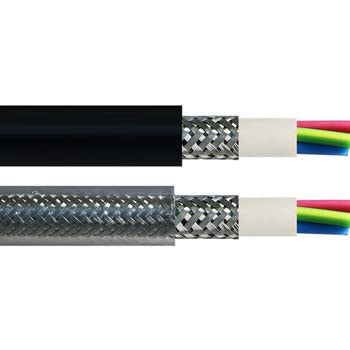

Cable 4mm 4c CBS VSD Flex 0.6/1kV Black Tinned
Firstflex Cables

Cable 4mm 4c CBS VSD Flex 0.6/1kV Black Tinned

Ideal part number AFLMDXCY440BK Manufacturer number MDXCY4/4.0BK Barcode 9416024115407
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 4.0mm 4 core CBS VSD Flex 0.6/1kV Black Tinned

Technical specifications

Colour
Black
Core colour
Blue, Green/Yellow, Red, White
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
4.0 mm²
Earth nominal size
4 mm²
Approximate stranding No. of wires x mm
56/0.3
Approximate overall diameter
16.5 mm²
Rated voltage
0.6/1kV
Approx weight per km
350 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 5000.1, IEC 60228, IEC 60332-1
Suits gland type
GK25EMC
Cable class
5
Conductor type
Tinned copper
Insulation
X-90
Sheath
SER105
Material
Rubber
Bedding sheath
true
Bedding sheath material
SPVC V-90HT
Inner sheath
false
Armoured
false
Screened
true
Screening material
Tinned copper braid
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-40°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-20°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
7.5 x cable diameter
Minimum bending radius flexing
15 x cable diameter
