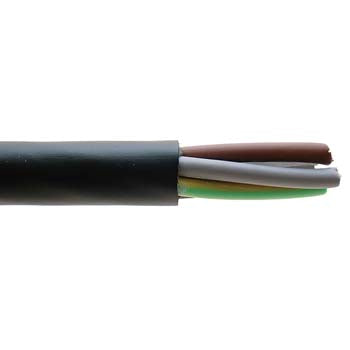

Cable 6mm 3c EPR/CPE Marine Flex 0.6/1kV Black
Firstflex Cables

Cable 6mm 3c EPR/CPE Marine Flex 0.6/1kV Black

Ideal part number AFLML360G2 Manufacturer number ML03/6.0BKG2 Barcode 9416024115735
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 6.0mm 3 core EPR/CPE Marine Flex 0.6/1kV Black

Technical specifications

Colour
Black
Core colour
Blue, Brown, Green/Yellow
Total no. of cores
3
No. of cores excl. earth
2
No. of earth
1
Nominal size
6.0 mm²
Earth nominal size
6 mm²
Approximate stranding No. of wires x mm
84/0.3
Approximate overall diameter
14.1 – 18
Rated voltage
0.6/1kV
Approx weight per km
454 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, DIN VDE 0165, DIN VDE 0295, H07RN-F Type, IEC 60079
Suits gland type
GK32STD
Cable class
5
Conductor type
Tinned copper
Insulation
EPR R90
Sheath
CPE Elastomer Rubber
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-40°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-25°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
4 x cable diameter
Minimum bending radius flexing
6 x cable diameter
