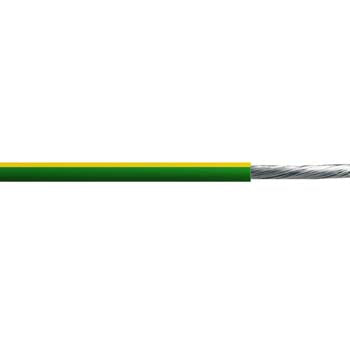

Appliance Wire 2.5mm Marine Tinned Green/Yellow
Firstflex Cables

Appliance Wire 2.5mm Marine Tinned Green/Yellow

Ideal part number AFLMST0025GNYE Manufacturer number MST002.5G/Y Barcode 9416024117364
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Appliance Wire 2.5mm Marine Tinned Green/Yellow High Performance Flexible Appliance / Marine Wire 0.6/1kV 90°C

Technical Specifications

Colour
Green/Yellow
Total no. of cores
1
No. of cores excl. earth
1
No. of earth
0
Nominal size
2.5 mm²
Approximate stranding No. of wires x mm
50/0.25
Approximate overall diameter
4.1 mm²
Rated voltage
0.6/1kV
Approx weight per km
32 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008
Cable class
5
Conductor type
Tinned copper
Insulation
SPVC V-90HT
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
105°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
5°C
Maximum operating temperature flexing
75°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
