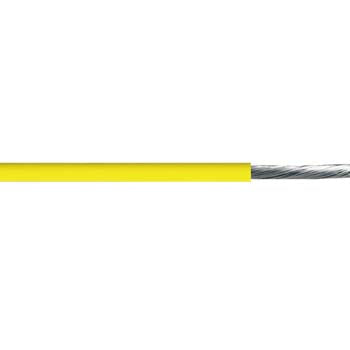

Appliance Wire 4mm Marine Tinned Yellow
Firstflex Cables

Appliance Wire 4mm Marine Tinned Yellow

Ideal part number AFLMST0040Y Manufacturer number MST004YEL Barcode 9416024117708
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Appliance Wire 4.0mm Marine Tinned Yellow High Performance Flexible Appliance / Marine Wire 0.6/1kV 90°C

Technical specifications

Colour
Yellow
Total no. of cores
1
No. of cores excl. earth
1
No. of earth
0
Nominal size
4.0 mm²
Approximate stranding No. of wires x mm
56/0.3
Approximate overall diameter
4.8 mm²
Rated voltage
0.6/1kV
Approx weight per km
50 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008.1, AS/NZS 3191, AS/NZS 3808, AS/NZS 5
Cable class
5
Conductor type
Tinned copper
Insulation
SPVC V-90HT
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
105°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
5°C
Maximum operating temperature flexing
75°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
