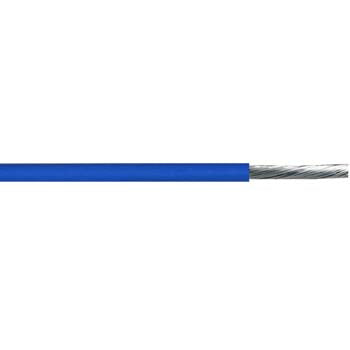

Appliance Wire 6mm Marine Tinned Blue

Appliance Wire 6mm Marine Tinned Blue

by Firstflex Cables
Ideal Part Number AFLMST0060BL Manufacturer Number MST006BLUE Barcode 9416024117746

Product Details

Appliance Wire 6.0mm Marine Tinned Blue High Performance Flexible Appliance / Marine Wire 0.6/1kV 90°C
Request a quote for this product

Enter details to request a quote

Technical Specifications

Colour
Blue
Total no. of cores
1
No. of cores excl. earth
1
No. of earth
0
Nominal size
6.0 mm²
Approximate stranding No. of wires x mm
84/0
Approximate overall diameter
5.3 mm²
Rated voltage
0.6/1kV
Approx weight per km
70 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008
Cable class
5
Conductor type
Tinned copper
Insulation
SPVC V-90HT
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
105°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
5°C
Maximum operating temperature flexing
75°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
