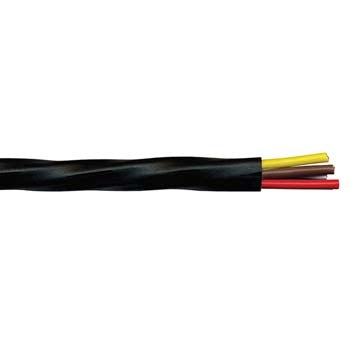

Trailer Flex 1.13mm 7C Black Automotive
Firstflex Cables

Trailer Flex 1.13mm 7C Black Automotive

Ideal part number AFLMTR716030B Manufacturer number MTR716030B Barcode 9416024118118
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Trailer Flex 1.13mm 7 core Black Automotive

Technical specifications

Colour
Black
Core colour
Black, Blue, Brown, Green, Red, White, Yellow
Total no. of cores
7
No. of cores excl. earth
7
No. of earth
0
Nominal size
1.13 mm²
Approximate stranding No. of wires x mm
16/0
Approximate overall diameter
8.6 mm²
Rated voltage
50VAC / 120VDC
Approx weight per km
138 kg
Relevant standards
AS/NZS 1125, IEC 60332-1
Cable class
5
Conductor type
Tinned copper
Insulation
SPVC
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
75°C
