Marine Flex 6mm 2c Marine Survey 75Deg Black
Firstflex Cables

Marine Flex 6mm 2c Marine Survey 75Deg Black

Ideal part number AFLMTSV260B Manufacturer number MTSV2/6.0B Barcode 9416024118583
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

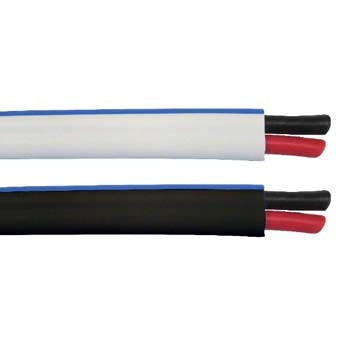

Marine Flex 6.0mm 2 core Marine Survey 75Deg Black

Technical specifications

Colour
Black/Blue stripe
Core colour
Red/Black
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
6.0 mm²
Approximate stranding No. of wires x mm
190/0.2
Approximate overall diameter
7.9 x 13
Rated voltage
0.6/1kV
Approx weight per km
143 kg
Relevant standards
IEC 60092-350, IEC 60092-353, IEC 60092-360, IEC 60228, IEC 60332-3-22
Cable class
5
Conductor type
Tinned copper
Insulation
XLPE
Sheath
PVC ST2.
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
10 x cable diameter
