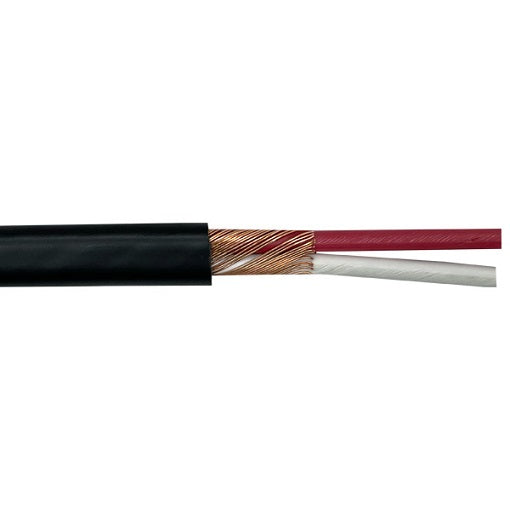

Cable 4mm 2c Cu PVC Neutral Scrn Rnd Trayscreen 1.8mm Black
Firstflex Cables

Cable 4mm 2c Cu PVC Neutral Scrn Rnd Trayscreen 1.8mm Black

Ideal part number AFLNST24R Manufacturer number NST2/4.0ROUND Barcode 9416024126328
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Neutral screen cable, 4.0mm, 2 core, Trayscreen, round 14mm outside diameter, black 1.8mm PVC sheath

Technical specifications

Colour
Black
Core colour
Red, White
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
4.0 mm²
Approximate stranding No. of wires x mm
7/0.85
Approximate overall diameter
14.0 mm²
Rated voltage
0.6/1kV
Approx weight per km
300 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, AS/NZS 4961, AS/NZS 5000
Cable class
2
Conductor type
Plain copper
Insulation
V-90
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-15°C
Maximum operating temperature
90°C
Minimum bending radius fixed
12 x cable diameter
