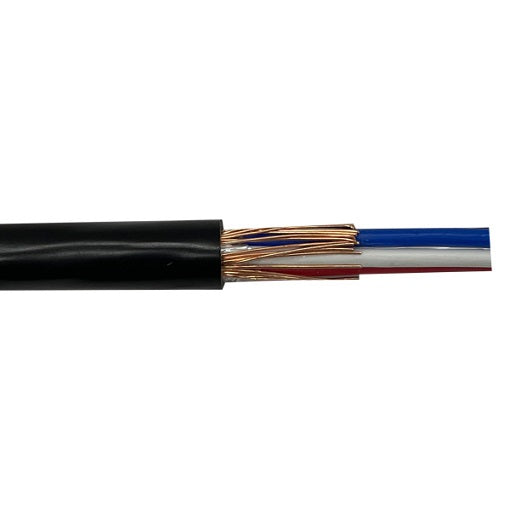

Cable 2.5mm 3c Cu PVC Neutral Screen Trayscreen 1.8mm Black
Firstflex Cables

Cable 2.5mm 3c Cu PVC Neutral Screen Trayscreen 1.8mm Black

Ideal part number AFLNST32.5 Manufacturer number NST3/2.5 Barcode 9416024100991
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Neutral screen cable, 2.5mm, 3 core, Trayscreen, black 1.8mm PVC sheath

Technical specifications

Colour
Black
Core colour
Blue, Red, White
Total no. of cores
3
No. of cores excl. earth
3
No. of earth
0
Nominal size
2.5 mm²
Approximate stranding No. of wires x mm
7/0.67
Approximate overall diameter
13.2 mm²
Rated voltage
0.6/1kV
Approx weight per km
300 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, AS/NZS 4961, AS/NZS 5000
Cable class
2
Conductor type
Plain copper
Insulation
V-90
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-15°C
Maximum operating temperature
90°C
Minimum bending radius fixed
12 x cable diameter
