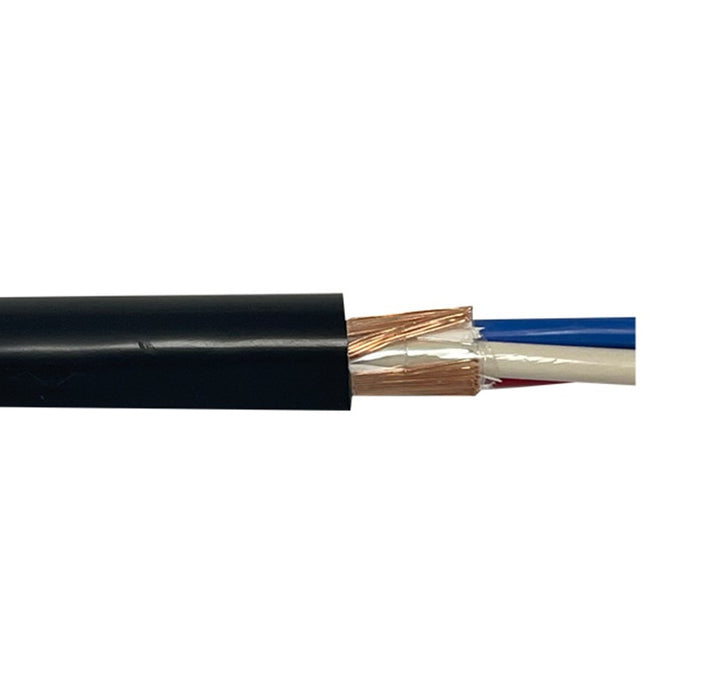

Cable Neutral Screen 6mm 4c
Firstflex Cables

Cable Neutral Screen 6mm 4c

Ideal part number AFLNSU46 Manufacturer number NSU4/6.0 Barcode 9416024101233
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable Neutral Screen 6mm 4 Core

Technical specifications

Colour
Black
Core colour
Black, Blue, Red, White
Total no. of cores
4
No. of cores excl. earth
4
No. of earth
0
Nominal size
6.0 mm²
Approximate stranding No. of wires x mm
7/1.04
Approximate overall diameter
20.2 mm²
Rated voltage
0.6/1kV
Approx weight per km
610 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, AS/NZS 4961, AS/NZS 5000.1
Cable class
2
Conductor type
Plain copper
Insulation
V-90
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-15°C
Maximum operating temperature
90°C
Minimum bending radius fixed
12 x cable diameter
