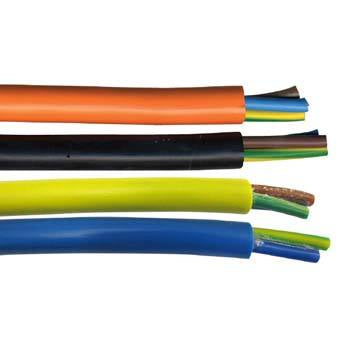

Cable 2.5mm 4c Ordinary Duty Flex Orange
Firstflex Cables

Cable 2.5mm 4c Ordinary Duty Flex Orange

Ideal part number AFLOD425OR Manufacturer number OD4/2.5OR Barcode 9416024119511
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 2.5mm 4 Core Ordinary Duty Flex Orange 250/440V 90°C

Technical specifications

Colour
Orange
Core colour
Black, Brown, Green/Yellow, Grey
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
2.5 mm²
Earth nominal size
2.5 mm²
Approximate stranding No. of wires x mm
80/0.2
Approximate overall diameter
11.2 mm²
Rated voltage
250 / 440V
Approx weight per km
200 kg
Relevant standards
AS/NZS 3008, AS/NZS 3191, AS/NZS 3808, IEC 60227, IEC 60332-1
Suits gland type
GK20STD
Cable class
5, 6
Conductor type
Plain copper
Insulation
SPVC V-90
Sheath
SER105
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
75°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
6 x cable diameter
