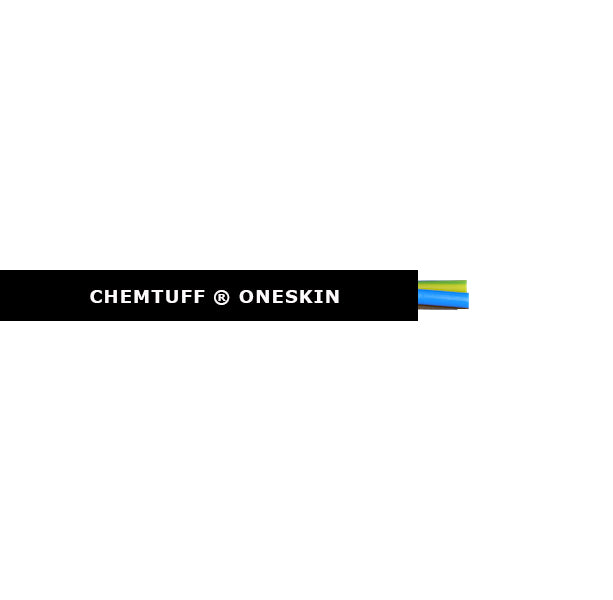

Cable 6mm 3c Chemtuff Oneskin Flex V90HT Black
Firstflex Cables

Cable 6mm 3c Chemtuff Oneskin Flex V90HT Black

Ideal part number AFLON36BK Manufacturer number ON3/6.0BK Barcode 9416024119757
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 6.0mm 3 Core Chemtuff Oneskin Ultra Performance Flexible Rubber Single Sheath V90HT Black

Chemtuff, used in applications that require a greater resistance to chemicals, solvents, oils and fats. Highly Flexible. Submersible to 200 metres

Technical specifications

Colour
Black
Core colour
Blue, Brown, Green/Yellow
Total no. of cores
3
No. of cores excl. earth
2
No. of earth
1
Nominal size
6.0 mm²
Earth nominal size
6 mm²
Approximate stranding No. of wires x mm
190/0.2
Approximate overall diameter
14.2 mm²
Rated voltage
0.6/1kV
Approx weight per km
396 kg
Relevant standards
AS/NZS 3191, AS/NZS 3808, AS/NZS 5000.1, IEC 60227, IEC 60332-1
Cable class
6
Conductor type
Plain copper
Insulation
X-90
Sheath
SER105
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
6 x cable diameter
