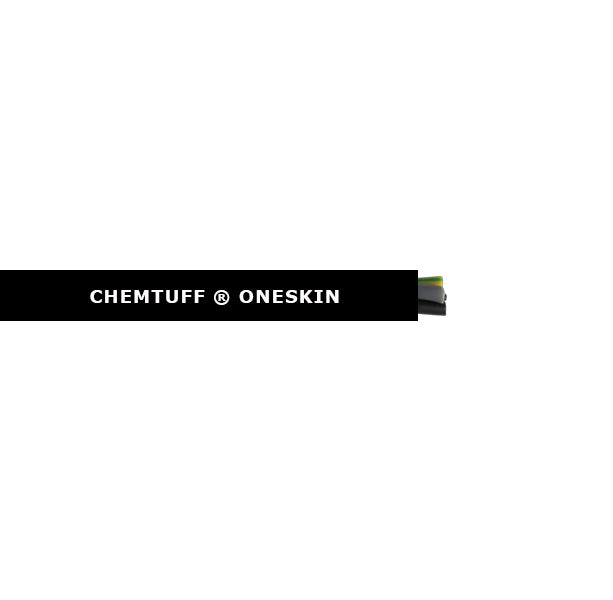

Cable 1.5mm 4c Chemtuff Oneskin Flex V90HT Black
Firstflex Cables

Cable 1.5mm 4c Chemtuff Oneskin Flex V90HT Black

Ideal part number AFLON41.5BK Manufacturer number ON4/1.5BK Barcode 9416024119788
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 1.5mm 4 Core Chemtuff Oneskin Ultra Performance Flexible Rubber Single Sheath V90HT Black

Chemtuff, used in applications that require a greater resistance to chemicals, solvents, oils and fats. Highly Flexible. Submersible to 200 metres

Technical specifications

Colour
Black
Core colour
Black, Blue, Brown, Green/Yellow
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
1.5 mm²
Earth nominal size
1.5 mm²
Approximate stranding No. of wires x mm
48/0.2
Approximate overall diameter
10.7 mm²
Rated voltage
0.6/1kV
Approx weight per km
160 kg
Relevant standards
AS/NZS 3191, AS/NZS 3808, AS/NZS 5000.1, IEC 60227, IEC 60332-1
Cable class
6
Conductor type
Plain copper
Insulation
X-90
Sheath
SER105
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
6 x cable diameter
