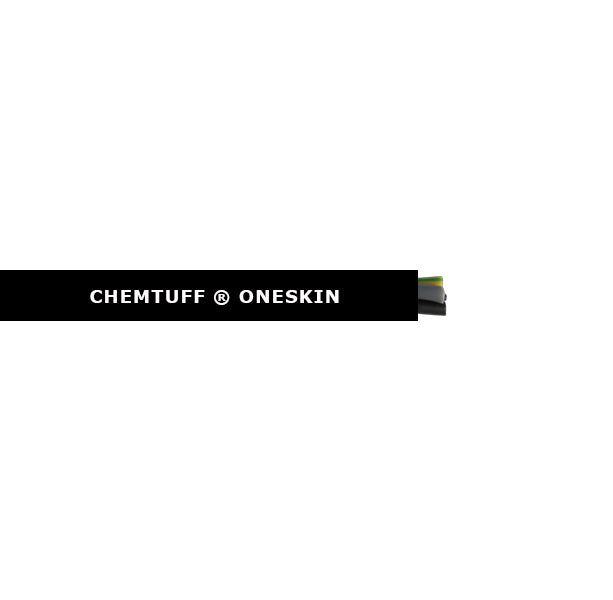

Cable 16mm 4c Chemtuff Oneskin Flex V90HT Black
Firstflex Cables

Cable 16mm 4c Chemtuff Oneskin Flex V90HT Black

Ideal part number AFLON416BK Manufacturer number ON4/16BK Barcode 9416024119832
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 16mm 4c Chemtuff Oneskin Flex V90HT Black

Technical specifications

Colour
Black
Core colour
Black, Blue, Brown, Green/Yellow
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
16 mm²
Earth nominal size
16 mm²
Approximate stranding No. of wires x mm
504/0.2
Approximate overall diameter
21.5 mm²
Rated voltage
0.6/1kV
Approx weight per km
1230 kg
Relevant standards
AS/NZS 3191, AS/NZS 3808, AS/NZS 5000.1, IEC 60227, IEC 60332-1
Cable class
6
Conductor type
Plain copper
Insulation
X-90
Sheath
SER105
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
6 x cable diameter
