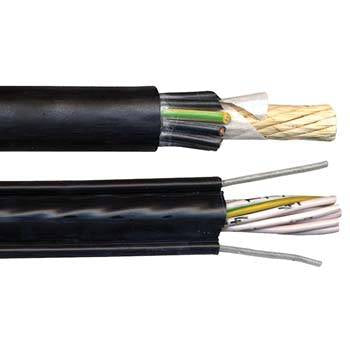

Cable 1.5mm 20c Pendant/Lift with Ext Support
Firstflex Cables

Cable 1.5mm 20c Pendant/Lift with Ext Support

Ideal part number AFLP20152S Manufacturer number P20/1.5-2S Barcode 9416024120166
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 1.5mm 20 core Pendant/Lift with Ext Support

Technical specifications

Colour
Black
Core colour
Black numbered, Green/Yellow
Total no. of cores
20
No. of cores excl. earth
19
No. of earth
1
Nominal size
1.5 mm²
Earth nominal size
1.5 mm²
Approximate stranding No. of wires x mm
84/0.15
Approximate overall diameter
21.0 x 36
Rated voltage
300 / 500V
Approx weight per km
715 kg
Relevant standards
DIN VDE 0293, DIN VDE 0295, IEC 60228, IEC 60332-1
Cable class
5, 6
Conductor type
Tinned copper
Insulation
EPR rubber,SPVC
Sheath
CPE Elastomer Rubber,TPE
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
75°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-40°C
Maximum operating temperature
75°C
Minimum operating temperature flexing
-30°C
Maximum operating temperature flexing
70°C
Minimum bending radius fixed
10 x cable diameter
