Cable 1.5mm 7c Pendant/Lift Cable Neo
Firstflex Cables

Cable 1.5mm 7c Pendant/Lift Cable Neo

Ideal part number AFLP715NEO Manufacturer number P7/1.5NEO Barcode 9416024120173
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

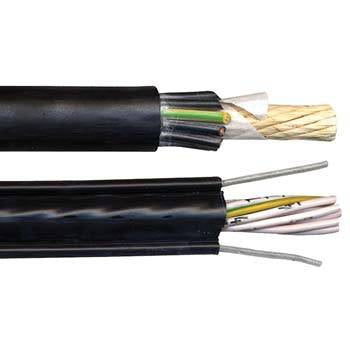

Cable 1.5mm 7 core Pendant/Lift Cable Neo

Technical specifications

Colour
Black
Core colour
Black numbered, Green/Yellow
Total no. of cores
7
No. of cores excl. earth
6
No. of earth
1
Nominal size
1.5 mm²
Earth nominal size
1.5 mm²
Approximate stranding No. of wires x mm
84/0.15
Approximate overall diameter
13.5 mm²
Rated voltage
300 / 500V
Approx weight per km
295 kg
Relevant standards
DIN VDE 0293, DIN VDE 0295, IEC 60228, IEC 60332-1
Cable class
5, 6
Conductor type
Tinned copper
Insulation
EPR rubber,SPVC
Sheath
CPE Elastomer Rubber,TPE
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
75°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-40°C
Maximum operating temperature
75°C
Minimum operating temperature flexing
-30°C
Maximum operating temperature flexing
70°C
Minimum bending radius fixed
10 x cable diameter
