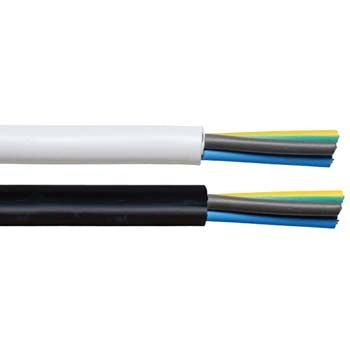

Cable .5mm 3c Flex PVC/PVC 90Deg 250/440V Black
Firstflex Cables

Cable .5mm 3c Flex PVC/PVC 90Deg 250/440V Black

Ideal part number AFLPF0305BK Manufacturer number PF03/0.5BK Barcode 9416024120555
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PF Series Flexible Cable 0.5mm 3 Core 250/440V SPVC Black

PF Series high performance Flexible cables 250/440V 90deg C, are suitable for interconnection for various forms of lighting including high bays, low bays, flood lights, reading lamps, pendants. Can be used for domestic only power leads, (Not recommended for industrial or harsh environments)

Technical specifications

Colour
Black
Core colour
Blue, Brown, Green/Yellow
Total no. of cores
3
No. of cores excl. earth
2
No. of earth
1
Nominal size
0.5 mm²
Earth nominal size
0.5 mm²
Approximate stranding No. of wires x mm
16/0.2
Approximate overall diameter
6.4 mm²
Rated voltage
250 / 440V
Approx weight per km
40 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3191, AS/NZS 3808, IEC 60332-1
Suits gland type
GMA216
Cable class
5
Conductor type
Plain copper
Insulation
SPVC V-90
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
75°C
Minimum bending radius fixed
7.5 x cable diameter
Minimum bending radius flexing
15 x cable diameter
