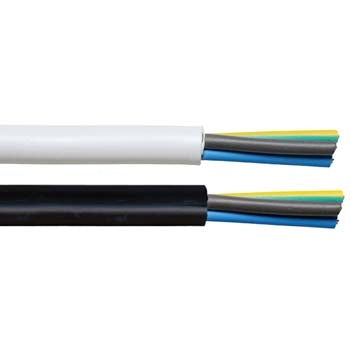

Cable .5mm 4c Flex PVC/PVC 90Deg 250/440V White
Firstflex Cables

Cable .5mm 4c Flex PVC/PVC 90Deg 250/440V White

Ideal part number AFLPF0405WH Manufacturer number PF04/0.5WH Barcode 9416024120920
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PF Series Flexible Cable 0.5mm 4 Core 250/440V SPVC White

Technical specifications

Colour
White
Core colour
Black, Brown, Green/Yellow, Grey
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
0.5 mm²
Earth nominal size
0.5 mm²
Approximate stranding No. of wires x mm
16/0.2
Approximate overall diameter
6.9 mm²
Rated voltage
250 / 440V
Approx weight per km
60 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3191, AS/NZS 3808, IEC 60332-1
Suits gland type
GMA216
Cable class
5
Conductor type
Plain copper
Insulation
SPVC V-90
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
75°C
Minimum bending radius fixed
7.5 x cable diameter
Minimum bending radius flexing
15 x cable diameter
