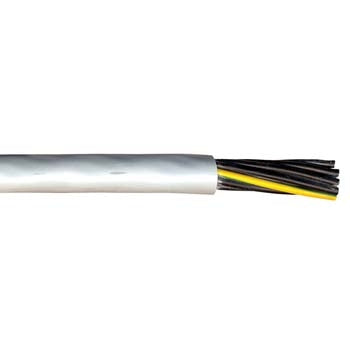

Cable .75mm 4c Energy Chain SPVC/SPVC Flex
Firstflex Cables

Cable .75mm 4c Energy Chain SPVC/SPVC Flex

Ideal part number AFLRH04075 Manufacturer number RH04/0.75 Barcode 9416024121910
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 0.75mm 4 core Energy Chain SPVC/SPVC Flex

Technical specifications

Colour
Grey
Core colour
Black numbered, Green/Yellow
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
0.75 mm²
Earth nominal size
0.75 mm²
Approximate stranding No. of wires x mm
42/0.15
Approximate overall diameter
6.4 mm²
Rated voltage
300 / 500V
Approx weight per km
77 kg
Relevant standards
DIN VDE 0281, DIN VDE 0295, DIN VDE 0812, IEC 60228, IEC 60332-1
Suits gland type
GMA216
Cable class
5, 6
Conductor type
Plain copper
Insulation
SPVC
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
80°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
80°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
80°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
7.5 x cable diameter
