Cable .75mm 18c Energy Chain SPVC/SPVC Flex
Firstflex Cables

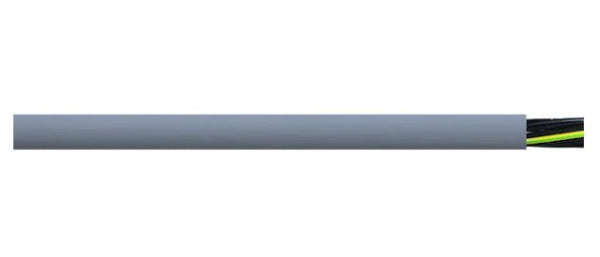

Cable .75mm 18c Energy Chain SPVC/SPVC Flex

Ideal part number AFLRH18075 Manufacturer number RH18/0.75 Barcode 9416024122016
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 0.75mm 18 core Energy Chain SPVC/SPVC Flex

Technical specifications

Colour
Grey
Core colour
Black numbered, Green/Yellow
Total no. of cores
18
No. of cores excl. earth
17
No. of earth
1
Nominal size
0.75 mm²
Earth nominal size
0.75 mm²
Approximate stranding No. of wires x mm
42/0.15
Approximate overall diameter
12.1 mm²
Rated voltage
300 / 500V
Approx weight per km
356 kg
Relevant standards
DIN VDE 0281, DIN VDE 0295, DIN VDE 0812, IEC 60228, IEC 60332-1
Suits gland type
GK25STD
Cable class
5, 6
Conductor type
Plain copper
Insulation
SPVC
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
80°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
80°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
80°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
7.5 x cable diameter
