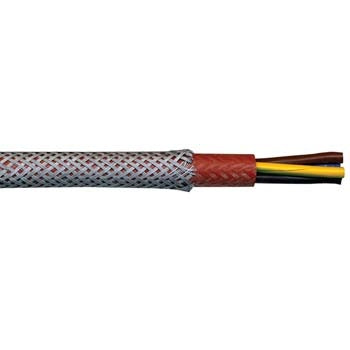

Cable 1.5mm 4c Silicone Braided Flex 180D
Firstflex Cables

Cable 1.5mm 4c Silicone Braided Flex 180D

Ideal part number AFLSICY415 Manufacturer number SICY4/1.5 Barcode 9416024122399
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 1.5mm 4 core Silicone Braided Flex 180D

Technical specifications

Colour
Brown
Core colour
Blue, Brown, Green/Yellow
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
1.5 mm²
Earth nominal size
1.5 mm²
Approximate stranding No. of wires x mm
30/0.25
Approximate overall diameter
8.7 mm²
Rated voltage
300 / 500V
Approx weight per km
173 kg
Relevant standards
DIN VDE 0282, DIN VDE 0295, DIN VDE 0472, IEC 60228, IEC 60332-1, IEC 60754-1
Cable class
5
Conductor type
Tinned copper
Insulation
Silicone rubber
Sheath
Silicone rubber
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
External steel wire braid
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
180°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-60°C
Maximum operating temperature
180°C
Minimum operating temperature flexing
-40°C
Maximum operating temperature flexing
180°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
