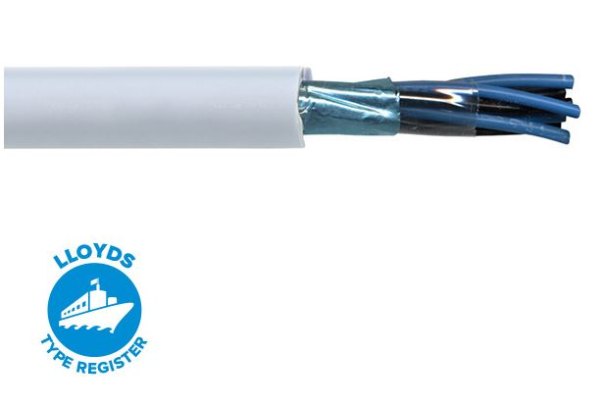

Cable .75mm 2pr Marine Data Foil Screen
Firstflex Cables

Cable .75mm 2pr Marine Data Foil Screen

Ideal part number AFLSOU022075 Manufacturer number SOU02/2/0.75 Barcode 9416024123686
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 0.75mm 2 pair Marine Data Foil Screen

Technical specifications

Colour
Grey
Core colour
Black numbered, Blue
Total no. of cores
4
No. of cores excl. earth
4
No. of earth
0
Nominal size
0.75 mm²
No. of paired cores
2
Approximate stranding No. of wires x mm
7/0.37
Approximate overall diameter
9 mm²
Rated voltage
250V
Approx weight per km
135 kg
Relevant standards
IEC 60092-350, IEC 60092-351, IEC 60092-352, IEC 60092-353, IEC 60092-359, IEC 60228 CL.2, IEC 60332-1, IEC 60332-3-22, IEC 60754-1/2, IEC 61034-1/2
Cable class
2
Conductor type
Tinned copper
Insulation
HF-XLPE X90
Sheath
LSHF
Material
LSHF
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
true
Laying up configuration
Twisted pairs,Triples,Quads
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-15°C
Maximum operating temperature
75°C
Minimum bending radius fixed
8 x cable diameter
