Cable Gel Traffic Loop Feeder 1.5mm 2Pr
Firstflex Cables

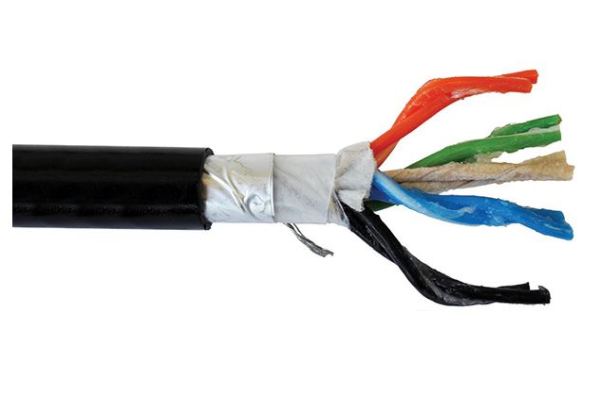

Cable Gel Traffic Loop Feeder 1.5mm 2Pr

Ideal part number AFLTCGEL02215 Manufacturer number TCGEL02/2/1.5 Barcode 9416024123983
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Traffic Loop Feeder Cable Gel Filled 1.5mm 2Pr

Technical specifications

Colour
Black
Core colour
Blue, Orange, Blue with white stripe, Orange with white stripe
Total no. of cores
4
No. of cores excl. earth
4
No. of earth
0
Nominal size
1.5 mm²
No. of paired cores
2
Approximate stranding No. of wires x mm
7/0.5
Approximate overall diameter
13.4 mm²
Rated voltage
300V
Approx weight per km
0 kg
Cable class
2
Conductor type
Plain copper
Insulation
LDPE
Sheath
SPVC 4V-75
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
true
Filler material
Transparent LDPE
Maximum conductor temperature
70°C
Minimum operating temperature
-20°C
Maximum operating temperature
70°C
Minimum bending radius fixed
12 x cable diameter
