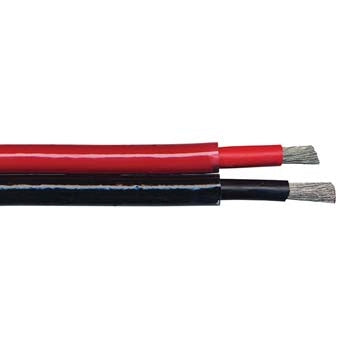

Cable 16mm 2c Marine Twin Flex Tinned Rd/Bk 90Deg
Firstflex Cables

Cable 16mm 2c Marine Twin Flex Tinned Rd/Bk 90Deg

Ideal part number AFLTW16T Manufacturer number TW16T Barcode 9416024124089
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 16mm 2 core Marine Twin Flex Tinned Rd/Bk 90Deg

Technical Specifications

Colour
Clear
Core colour
Black, Red
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
16 mm²
Approximate stranding No. of wires x mm
511/0
Approximate overall diameter
9.80 x 19
Rated voltage
0.6/1kV
Approx weight per km
453 kg
Relevant standards
AS/NZS 1125, DIN VDE 0250, DIN VDE 472, IEC 60332-1
Cable class
5
Conductor type
Tinned copper
Insulation
SPVC
Sheath
Transparent PVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
75°C
Minimum bending radius fixed
10 x cable diameter
