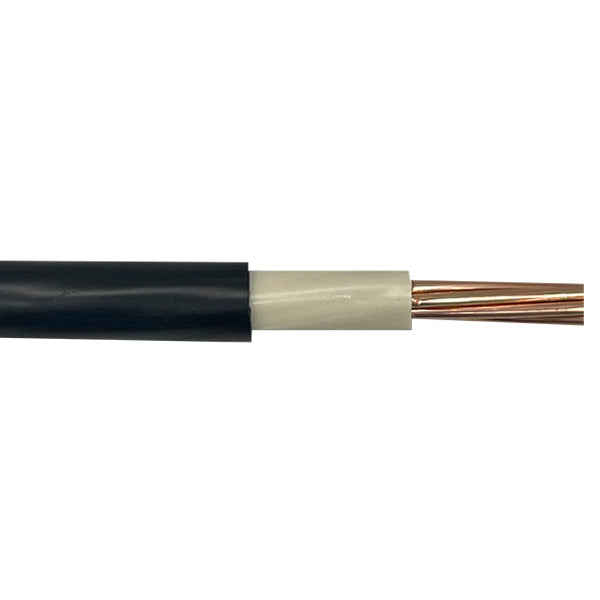

Cable Vintol 1c 35mm Cu PVC Black
Firstflex Cables

Cable Vintol 1c 35mm Cu PVC Black

Ideal part number AFLVIN035BK Manufacturer number VIN035BK Barcode 9416024124409
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable Vintol single core 35mm copper PVC Black

Technical specifications

Colour
Black
Total no. of cores
1
No. of cores excl. earth
1
No. of earth
0
Nominal size
35 mm²
Approximate stranding No. of wires x mm
19/1.53
Approximate overall diameter
12.9 mm²
Rated voltage
0.6/1kV
Approx weight per km
440 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, AS/NZS 5000.1
Cable class
2
Conductor type
Plain copper
Insulation
SPVC V-75
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
75°C
Minimum operating temperature
-20°C
Maximum operating temperature
75°C
Minimum bending radius fixed
12 x cable diameter
