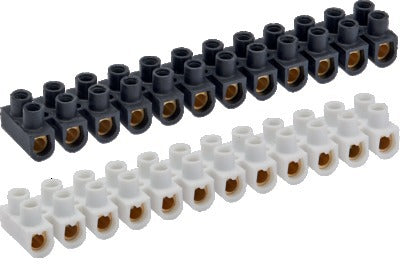

Terminal Blocks 6mm Black (15A 400V)

Terminal Blocks 6mm Black (15A 400V)

by BizLine
Ideal Part Number BIZ320002 Manufacturer Number BIZ 320002 Barcode 3700420310693

Product Details

Terminal Strip Connector Block 12-Way 6.0mm Black (15A 400V)

These 12-way ultra flexible terminal blocks can be separated in 1.5 turns without the use of tools.

Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
Other
Colour
Black
Rated voltage
400
Number of poles
12
Operating temperature
-25-40
Number of clamp positions per pole
2
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Drill hole distance centrically
9
Transparent
no
Connectable conductor cross section solid-core
0-6
Connectable conductor cross section fine-strand with cable end sleeve
0-4
Connectable conductor cross section fine-strand without cable end sleeve
0-6
Connectable conductor cross section multi-wired
0-6
Material insulation body
Thermoplastic
Rated current In
57
Explosion-tested version 'Ex e'
no
Country of Origin
China
Rated voltage (unit)
V
Operating temperature (unit)
°C
Drill hole distance centrically (unit)
mm
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Rated current In (unit)
A
