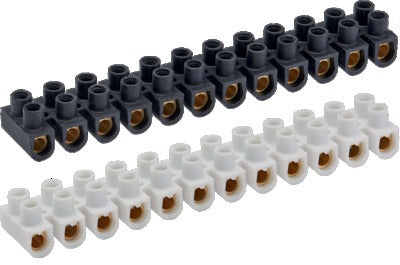

Terminal Blocks 6mm White (15A 400V)

Terminal Blocks 6mm White (15A 400V)

by BizLine
Ideal Part Number BIZ320007 Manufacturer Number BIZ 320007 Barcode 3700420369264

Product Details

Terminal Strip Connector Block 12-Way 6.0mm White (15 Amps 400V)

This ultra flexible connector strip can be separated in 1.5turns without the use of tools. The screws are engaged at 1/3. They are rated 41 Amps at 400 Volts and will take a 6mm² cable.

Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
Other
Colour
White
Rated voltage
400
Number of poles
12
Operating temperature
-25-50
Number of clamp positions per pole
2
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Drill hole distance centrically
9
Transparent
no
Connectable conductor cross section solid-core
0-6
Connectable conductor cross section fine-strand with cable end sleeve
0-4
Connectable conductor cross section fine-strand without cable end sleeve
0-6
Connectable conductor cross section multi-wired
0-6
Material insulation body
Thermoplastic
Rated current In
41
Explosion-tested version 'Ex e'
no
Country of Origin
China
Rated voltage (unit)
V
Operating temperature (unit)
°C
Drill hole distance centrically (unit)
mm
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Rated current In (unit)
A
