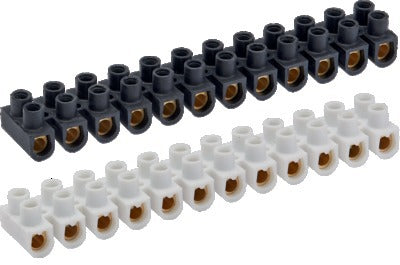

Terminal Blocks 25mm White (100A 400V)

Terminal Blocks 25mm White (100A 400V)

by BizLine
Ideal Part Number BIZ320010 Manufacturer Number BIZ 320010 Barcode 3700420369295

Product Details

Terminal Strip Connector Block 12-Way 25mm White (100A 400V)
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
Other
Colour
White
Rated voltage
400 V
Number of poles
12
Operating temperature
-25-50 °C
Number of clamp positions per pole
2
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Drill hole distance centrically
17 mm
Transparent
no
Connectable conductor cross section solid-core
0-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0-25 mm²
Connectable conductor cross section multi-wired
0-25 mm²
Material insulation body
Thermoplastic
Rated current In
101 A
Explosion-tested version 'Ex e'
no
Country of Origin
China
