Screw Connector Double 32A (Jar 50)

Screw Connector Double 32A (Jar 50)

by BizLine
Ideal Part Number BIZ390053 Manufacturer Number BIZ 390053 Barcode 3700882104489

Product Details

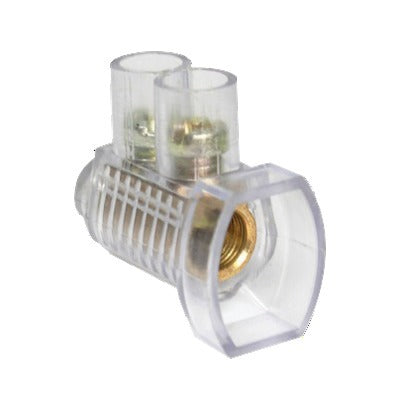

Screw Connector Double 6mm 32A Clear (Jar 50)

Clear insulating plastic housing so the termination can be visually checked.Available in one or two screw versions. Can accomodate up to 6mm cable.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
Direct mounting
Colour
Other
Rated voltage
450 V
Number of poles
1
Operating temperature
-35-120 °C
Number of clamp positions per pole
2
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Drill hole distance centrically
7 mm
Transparent
yes
Connectable conductor cross section solid-core
6 mm²
Connectable conductor cross section fine-strand with cable end sleeve
6 mm²
Connectable conductor cross section fine-strand without cable end sleeve
6 mm²
Connectable conductor cross section multi-wired
6 mm²
Material insulation body
Thermoplastic
Rated current In
32 A
Explosion-tested version 'Ex e'
no
