E1Ex-0-20S Cable Gland Hazard W/Proof Armoured TN-0523-0
CCG Cable Terminations - Captive Component Gland

E1Ex-0-20S Cable Gland Hazard W/Proof Armoured TN-0523-0

Ideal part number CCG05230 Manufacturer number TN-0523-0
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

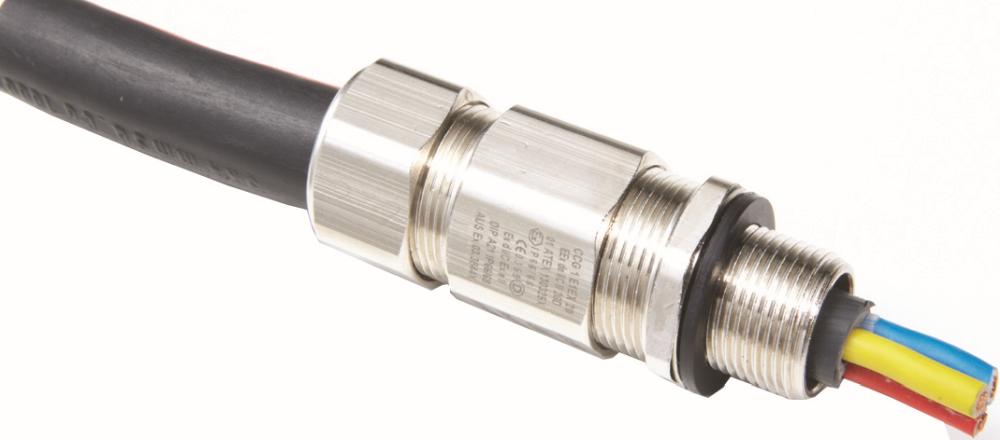

E1Ex-0-20S Cable Gland Hazard Weather Proof Armoured TN-0523-0

For use indoors, outdoors Group II, III, Zone 1, 2, 21 and 22 hazardous areas. Two-part handling, no loose parts. Provides 360° earthing to lead sheath. Freely rotating captive cone ring, providing an armour clamp and earth bond without twisting the armour wires. Freely rotating captive cone and inspectible cone ring an armour clamp and earth bond for steel wire armour. Factory fitted a specially formulated elastomeric seal for Built-in Safety , lead seals on the lead sheath to IP65/66/68. Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated) available in stainless steel 316/316L on request. Complete with a thread sealing gasket.
