E1Ex-U 1-20 Gland Arm 12.5-20.5mm TN-057101
CCG Cable Terminations - Captive Component Gland

E1Ex-U 1-20 Gland Arm 12.5-20.5mm TN-057101

Ideal part number CCG057101 Manufacturer number TN-057101
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

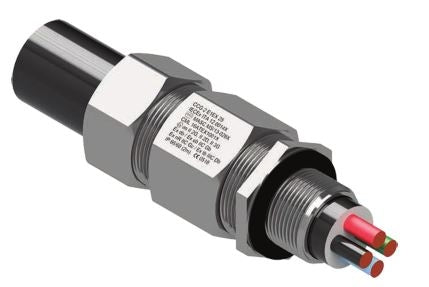

E1Ex-U 1-20 Gland Armoured 12.5-20.5mm TN-057101

For indoor, outdoors, Group I, II, III, Zone 1, 2, 21 and 22 hazardous areas. Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond for steel wire, aluminium, braid and tape armour. Patented disconnect system that allows inspection of armour clamp and inner seal after assembly. Factory fitted captive elastomeric seals for Built-in Safety . Seals on both inner and outer sheaths to IP66/68. Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated TM ) available in stainless steel 316/316L on request. Complete with thread sealing gasket. TM
