Infrascan PIR Detector 10AX Grey IP66
Clipsal

Infrascan PIR Detector 10AX Grey IP66

Ideal part number CLI750WPR5GY Manufacturer number 750WPR5-GY Barcode 9311554815530
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Movement sensor, Infrascan, Passive infrared, Outdoor, 18m detection range, 3 wire, 240V 10A, grey

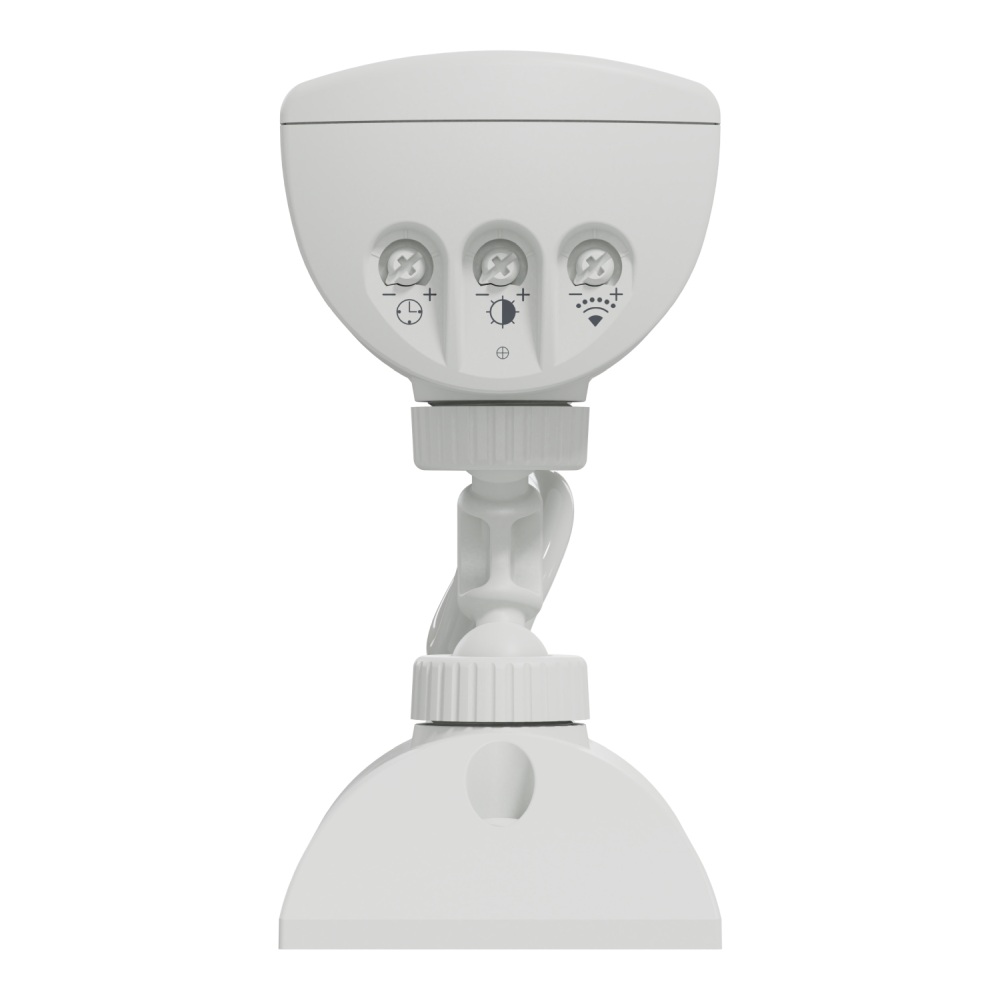

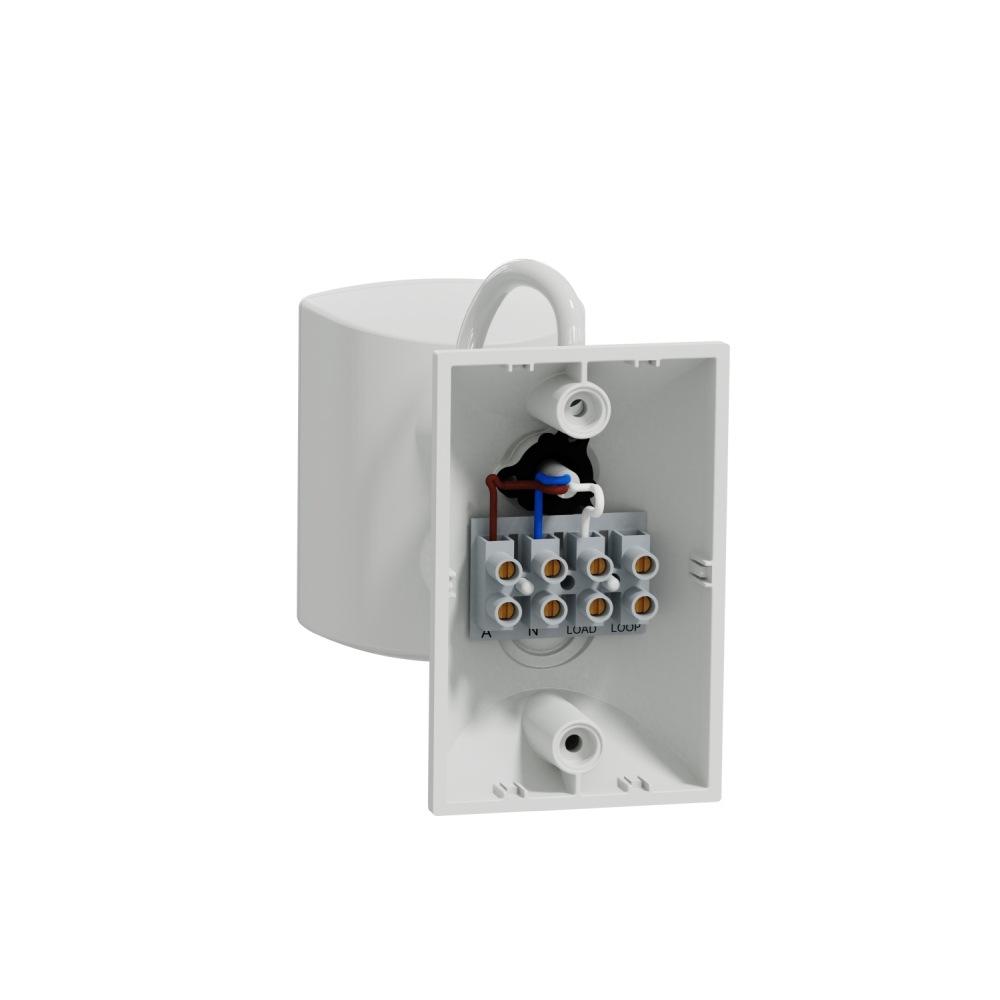

Schneider Electric Clipsal Infrascan movement sensor is suitable for outdoor residential and commercial applications. The Sensor is equipped with Security lighting, entry way lighting and also highly energy efficient. This motion sensor uses passive infrared technology (PIR sensor), integrated with timer and provided with light level adjustment. The device switches lights-on upon movement detection for a defined time period, depending on the ambient light level. It has a detection range of 18m with 110 degrees field of view. The Timer range is 5s to 20min. It has manual override feature. The product has 5-year warranty. Its Ue rated operational voltage is 240VAC at 50Hz, 3-wire design with rated current 10A. The standby power consumption is less than 1W. The load handling of LED lights is 300W, incandescent lamps 2400W and fluorescent 2400W. This Motion Sensor is designed to be Surface mounted. The colour of the product is grey. The Ambient air temperatures is from 0°C up to +50°C. The degree of protection is IP66. It is supplied with sensor and mounting accessories. Automatically switching lights ON, when movement is detected, will help to improve safety and security around building perimeters. Lights are ON only when needed, improves energy savings and reduces operating costs. This device complies AS/NZS 60669 standard.

Technical specifications

Mounting method
Surface mounted
Colour
Grey
Model
Infrascan 3-Wire
Voltage type
AC
Frequency
50 Hz
Max. reach frontally
18 m
Max. switching power
10 A
Degree of protection
IP66 (Ip: IP66)
Optimum mounting height
2.4 m
Sensor type
Passive Infrared
