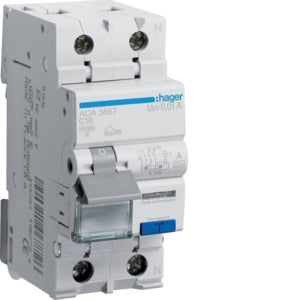

RCBO 1P+N 16A 10kA C-Curve 10mA Type A 2Mod

RCBO 1P+N 16A 10kA C-Curve 10mA Type A 2Mod

by Hager
Ideal Part Number HAGACA566T Manufacturer Number ACA566T Barcode 3250611011859

Product Details

RCBO 1P+N 16A 10kA C-Curve 10mA Type A 2Module
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Built-in depth
68 mm
Rated current
16 A
Rated voltage
240 V
Release characteristic
C
Rated fault current
0 A
Leakage current type
A
Surge current capacity
0 kA
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Frequency
50 Hz
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
yes
Rated short-circuit breaking capacity according to IEC 60947-2
10 kA
Number of poles
2 (Total: 2)
Anti-nuisance tripping version
no
