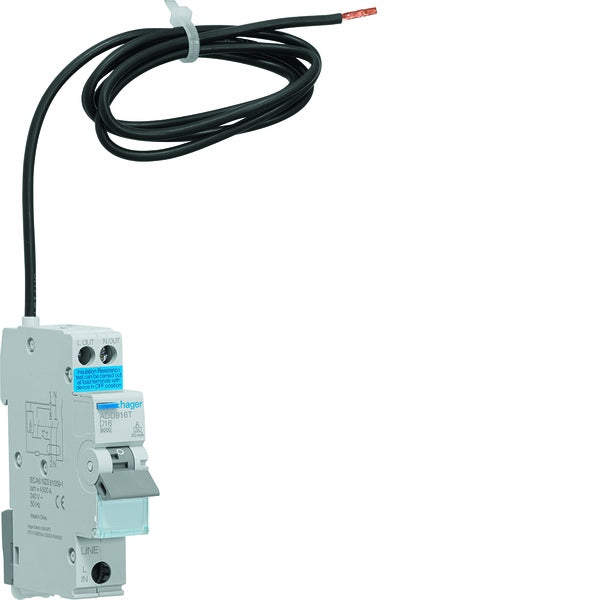

RCBO 1P+N 16A 6kA D-Curve 30ma Type A 1Mod
Hager

RCBO 1P+N 16A 6kA D-Curve 30ma Type A 1Mod

Ideal part number HAGADD916T Manufacturer number ADD916T Barcode 3250611033424
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

RCBO 1P+N 16A 6kA D-Curve 30ma Type A 1 Module

Compact combination devices which provide overcurrent protection & earth leakage protection. The Type A and Type AC devices, some with line neutral switched, are available in various current ratings from 6A - 40A. Specifically designed for DIN rail enclosures - However ADC3xxT can be used in invicta panelboards.

Technical specifications

Voltage type
AC
Built-in depth
70 mm
Rated current
16 A
Rated voltage
240 V
Release characteristic
D
Rated fault current
0.03 A
Leakage current type
A
Surge current capacity
0.25 kA
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Frequency
50 Hz
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
yes
Rated short-circuit breaking capacity according to IEC 60947-2
6 kA
Number of poles
2 (Total: 2)
Anti-nuisance tripping version
no
