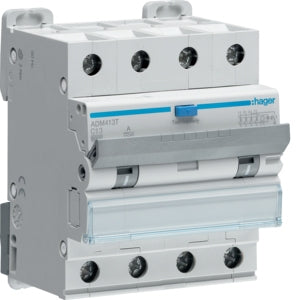

RCBO 4P 25A 6kA C-Curve 30mA Type A 4Mod

by Hager

Product Details

RCBO 4P 25A 6kA C-Curve 30mA Type A 4Module

AxM4xxT are 4 pole RCBO devices which provide a combination of overcurrent and earth leakage protection. Available as ‘C’ curve in various current ratings from 6A to 40A. Available in 30mA and 100mA. 4P RCBO devices can only be used for DIN rail enclosures. Suitable for balanced and unbalanced loads.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Built-in depth
70 mm
Rated current
25 A
Rated voltage
415 V
Release characteristic
C
Rated fault current
0 A
Leakage current type
A
Surge current capacity
3 kA
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Frequency
50 Hz
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
4
Number of poles
4 (Total: 4)
Anti-nuisance tripping version
no
