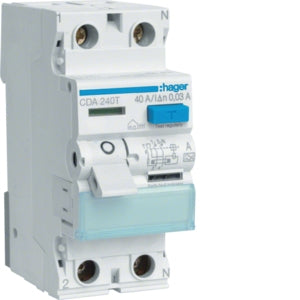

RCCB 2P 40A 30mA Type A 2Mod

RCCB 2P 40A 30mA Type A 2Mod

by Hager
Ideal Part Number HAGCDA240T Manufacturer Number CDA240T Barcode 3250611615453

Product Details

Hager RCCB 2 Pole 40A 30mA Type A 2 Module

Residual Current Circuit Breaker (RCCB) or ‘Safety Switches’ are designed to open a protected cir automatically when the circuit lea current to earth, greater or equal he devices rated tripping current For use in residential, commercial or industrial installations.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
DIN rail
Built-in depth
70
Rated current
40
Rated voltage
230
Number of poles
2
Rated fault current
30
Leakage current type
A
Selective protection
no
Short-circuit breaking capacity (Icw)
6
Surge current capacity
0
Width in number of modular spacings
2
Short-time delayed tripping
no
Frequency
50 Hz
Degree of protection (IP)
IP20
Additional equipment possible
yes
Built-in depth (unit)
mm
Rated current (unit)
A
Rated voltage (unit)
V
Rated fault current (unit)
A
Short-circuit breaking capacity (Icw) (unit)
kA
Surge current capacity (unit)
kA
