Timer 1Ch 24hr 5 x Pre Rec Programme

by Hager

Product Details

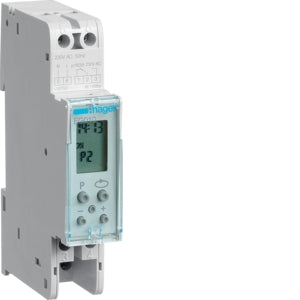

Timer 1 Channel 24hr 5 x Pre Rec Programme

Hager’s Time Switches are recommended for command of lighting circuit, heating, water pumps and ventilation control. The range offers the use of different keys to adapt the programs to their installation. The program can be saved on PC and/or be transferred to a programming key via the EG003 software interface. A personalised file can be printed out for your customers. Thus all the project and programming information can be kept in the electrical distribution board. Hager strongly recommend the installation of modular contactors with all time switches.
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail
Width
18 mm
Height
92 mm
Depth
64 mm
Astro program
no
Number of channels
1
Radio-controlled
no (Dcf77: no)
Weekly program
no
Annual program
no
Contact type
1 Changeover
GPS
no (Global positioning system: no)
Width in number of modular spacings
1
60 min program
yes
24 h program
yes
Holiday program
no
Random program
no
Impulse program
no
Cycle program
no
Mains synchronous
no
Quartz controlled
yes
Automatic switching summer-/winter time
yes
Suitable for manual operation
yes
Switching preselection
yes
Voltage type
AC (Supply voltage: AC)
Potential free switch contact
yes
External programming
no
Supply voltage
230 V
Hour meter
no
Frequency supply voltage
50 Hz
Shortest switching time channel 1
1 min
Nominal switching current at 250 V AC
16 A
Text guidance in display
no
Degree of protection
IP20 (Ip: IP20)
With memory card
no
