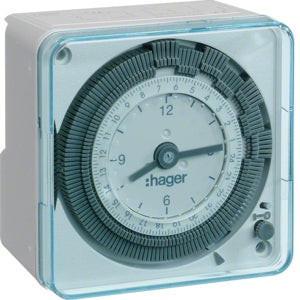

Timer 72 x 72 24hr with Reserve Din or Surface Mount

Timer 72 x 72 24hr with Reserve Din or Surface Mount

by Hager

Product Details

Analogue Time Switch 24 Hour Surface Mount With Reserve

Electromechanical 1 channel time switches, with daily or weekly programming. For control of lighting, heating, household appliances, shop windows etc, to improve comfort and save energy. For use in domestic and commercial premises.
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail
Width
72 mm
Height
72 mm
Depth
48 mm
Number of channels
1
Weekly program
no
Contact type
Change-over contact
Width in number of modular spacings
4
24 h program
yes
Quartz controlled
yes
Automatic switching summer-/winter time
no
Suitable for manual operation
yes
Voltage type
AC (Supply voltage: AC)
Supply voltage
230 V
Frequency supply voltage
50 Hz
Shortest switching time channel 1
10 min
Nominal switching current at 250 V AC
16 A
Degree of protection
IP20 (Ip: IP20)
