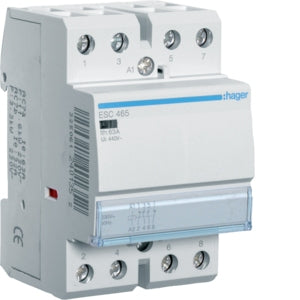

Contactor 4P 2N/O+2N/C 63A 230VAC Series II
Hager

Contactor 4P 2N/O+2N/C 63A 230VAC Series II

Ideal part number HAGESC465 Manufacturer number ESC465 Barcode 3250612401352
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Contactor 4P 2N/O+2N/C 63A 230VAC Series II AC7a & AC7b

Hager Contactors are suitable for load switching applications in residential and commercial installations. Some typical applications include heating, ventilation, indoor/outdoor lighting, pool pumps and/or filters.

Technical specifications

Built-in depth
60 mm
Rated operating voltage
400 V
Max. incandescent lamp load
6500 W
Max. load fluorescent lamp
3000 VA (Duo circuit: 4700, Parallel compensated: 2100)
Slider for hand switch
no
Voltage type
AC (Excitation voltage: AC, Operating voltage: AC)
Degree of protection
IP2X (Ip: IP2X)
Rated operation current
63 A
Additional equipment possible
yes
Rated excitation voltage
230 V
