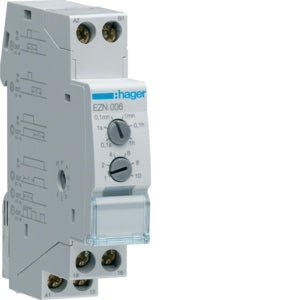

Multi-Function Timer 8A 0.1s-10hr
Hager

Multi-Function Timer 8A 0.1s-10hr

Ideal part number HAGEZN006 Manufacturer number EZN006 Barcode 3250612469949
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Multi-Function Timer 8A 0.1s-10hr Connection Capacity 1.5 -10mm Rigid Cable 1 - 6mm Flexible Cable. AC1 Rated.

The input signal for a Timer can be via various switching devices (push button, latching switch, time clock etc.) and the Timed output used to control the application. Note: Not suitable for connection to safety extra-low voltage (SELV).

Technical specifications

Function
Multi function
Built-in height
58 mm
Type of excitation
Analogue with multi function
Width in number of modular spacings
1
Number of changeover switches
1
Control voltage 1
230 V
Control voltage 2
48 V
Type of control voltage 1
AC
Type of control voltage 2
AC/DC
Frequency control voltage 1
50 Hz
Frequency control voltage 2
50 Hz
Voltage type
AC/DC (Supply voltage: AC/DC)
Supply voltage
250 V
1st interval unit
Seconds/hours
2nd interval unit
Seconds/hours
1st interval
10,0.1
2nd interval
10,0.1
Nominal switching current at 250 V AC
8 A
Switch capacity incandescent lamps
450 W
Switch capacity fluorescent lamp inductive
500 VA
