Loadbreak Switch 3P 160A 307

Loadbreak Switch 3P 160A 307

by Hager

Product Details

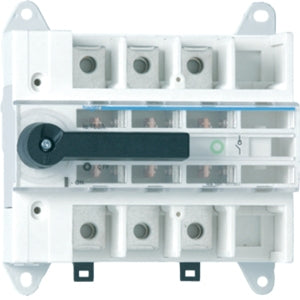

Loadbreak Switch 3P 160A 307

The HA series is a range of multi-pole load disconnector switches with manual operation. Available in DIN mount or Surface mount versions, they enable the making and breaking of a load and safety isolation of any low voltage installation.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
160 A
Number of poles
3
Rated operating voltage
415 V
Conditioned rated short-circuit current Iq
50 kA
Degree of protection
IP00 (Ip, front side: IP00)
Number of auxiliary contacts as change-over contact
0
Interlockable
yes
Motor drive integrated
no
Type of electrical connection of main circuit
Cable clamp
Version as emergency stop installation
no
Type of control element
Short thumb-grip
Version as main switch
yes
Version as safety switch
yes
Version as maintenance-/service switch
yes
Rated operation power at AC-23, 400 V
72 kW
Rated short-time withstand current lcw
4 kA
Colour control element
Black
Suitable for floor mounting
yes
Suitable for front mounting 4-hole
no
Suitable for front mounting centre
no
Suitable for distribution board installation
yes
Suitable for intermediate mounting
no
Max. rated operation voltage Ue AC
415 V
Motor drive optional
no
Voltage release optional
no
Device construction
Built-in device
Rated permanent current at AC-21, 400 V
160 A
Switching power at 400 V
105 kW
Version as reversing switch
no
